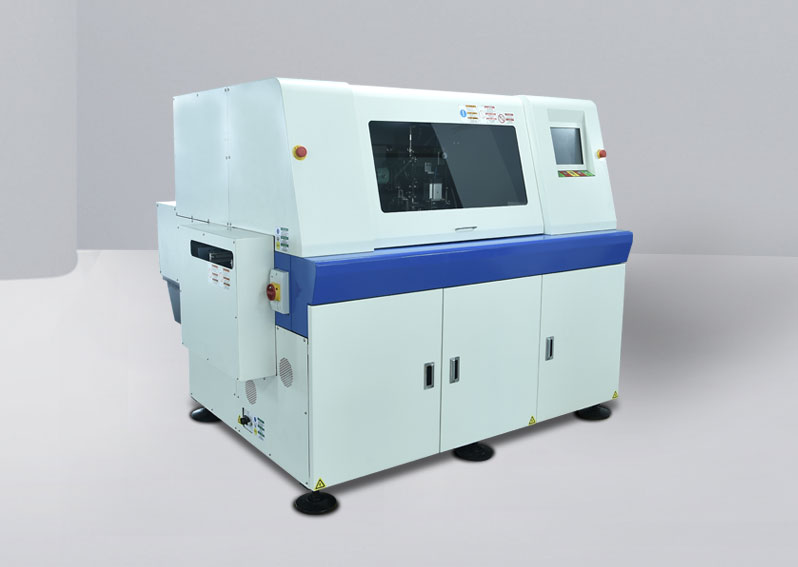

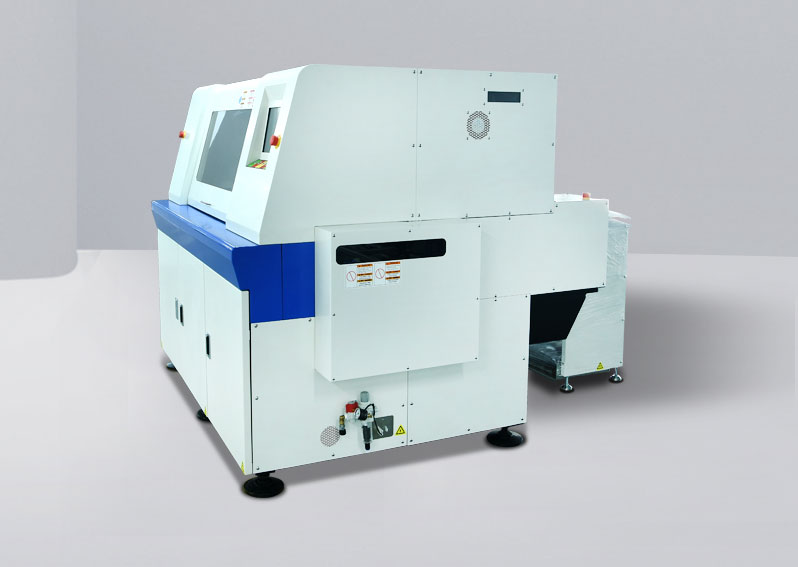

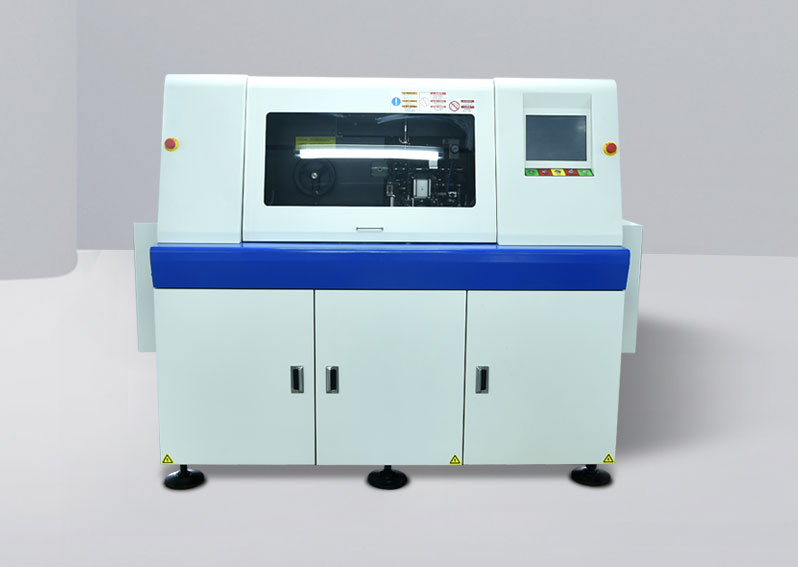

Automatic vertical plug-in machine
- Servo motor drive, 360 ° insertion angle, high speed and high density plug-in.
- Plug in bad automatic detection, you can choose the function of automatic interpolation.
- Fully automatic up and down board track system, with up and down board machine to achieve fully automatic process.
- Support 2.5/5.0mm span, 7.5/10.0/3.5mm span (option).
- Touch screen Chinese interface, high-end, convenient and easy to use.
- Compact design, small footprint.
Automatic vertical plug-in machine
Product features
It is driven by servo motor with 360 ° insertion angle to realize high-speed and high-density plug-in.
Plug in defect automatic detection, you can choose the function of automatic interpolation.
Fully automatic upper and lower plate track system, with the upper and lower plate machine to achieve fully automatic process.
Support 2.5/5.0mm span, 7.5/10.0/3.5mm span (option).
The touch screen Chinese interface is high-end, convenient and easy to use.
Compact design, takes up less space.
A variety of configurations are available for purchase
- German standard
- Daily elevation matching
- Japanese standard configuration
- Customized
*The above models can support 2.5 / 5.0 mm span, 7.5 / 10.0 / 3.5 mm span (can be selected according to customer demand when ordering).
Cost performance evaluation with mainstream vertical plug-in machines at home and abroad:
| Brand | A foreign mainstream model | Nb168 | A mainstream model in China |
| Theoretical capacity (CPH) | 22000 | 22000 | 18000 |
| Actual capacity (CPH) | 16000 | 16000 | 6000 |
| Actual insertion rate (PPM) | Less than 1000 | Less than 1000 | Less than 3000 |
| Investment amount (RMB) | 1400K-1800K | 700K-900K | 350K-500K |
| Consumables (RMB / month) | 10K-20K | 1K-2K | 1K-2K |
| Service life (years) | 10+ | 10+ | 2-5 |
Performance parameters
| Power supply | Rated voltage: 3-phase 380V ± 20V Frequency: 50 / 60Hz Rated capacity: about 4.0kva |
| Air source | Supply air pressure: Min 0.45mpa-max 0.8MPa (the operating pressure is 0.45mpa-0.5mpa) Air supply: About 80L / min (a.n.r) |
| Equipment size | W2120mm * d1750mm * h1610mm (excluding signal tower and material rack) |
| Weight | Host weight: About 2000kg (host only) |
| Speed | Quick plug in: 0.168 seconds / point |
| Suitable for components | Spacing: 2.5mm/5.0mm (standard model) mm Spacing: 3.5mm/7.5mm/10.0mm (optional model √) |
| Insert direction | 360 ° direction (1 ° as unit) |
| Interpolation mode | Automatic machine interpolation / manual machine interpolation |
| Recognition mode | Automatic identification |
| Applicable substrate size | Minimum: 50 * 50mm maximum: 500 * 380mm |
| Bending angle | N-shaped 35 ° angle |
| Feeder | 5.0 mm standard feeder (10 pieces) |
